Hagen Automation Ltd

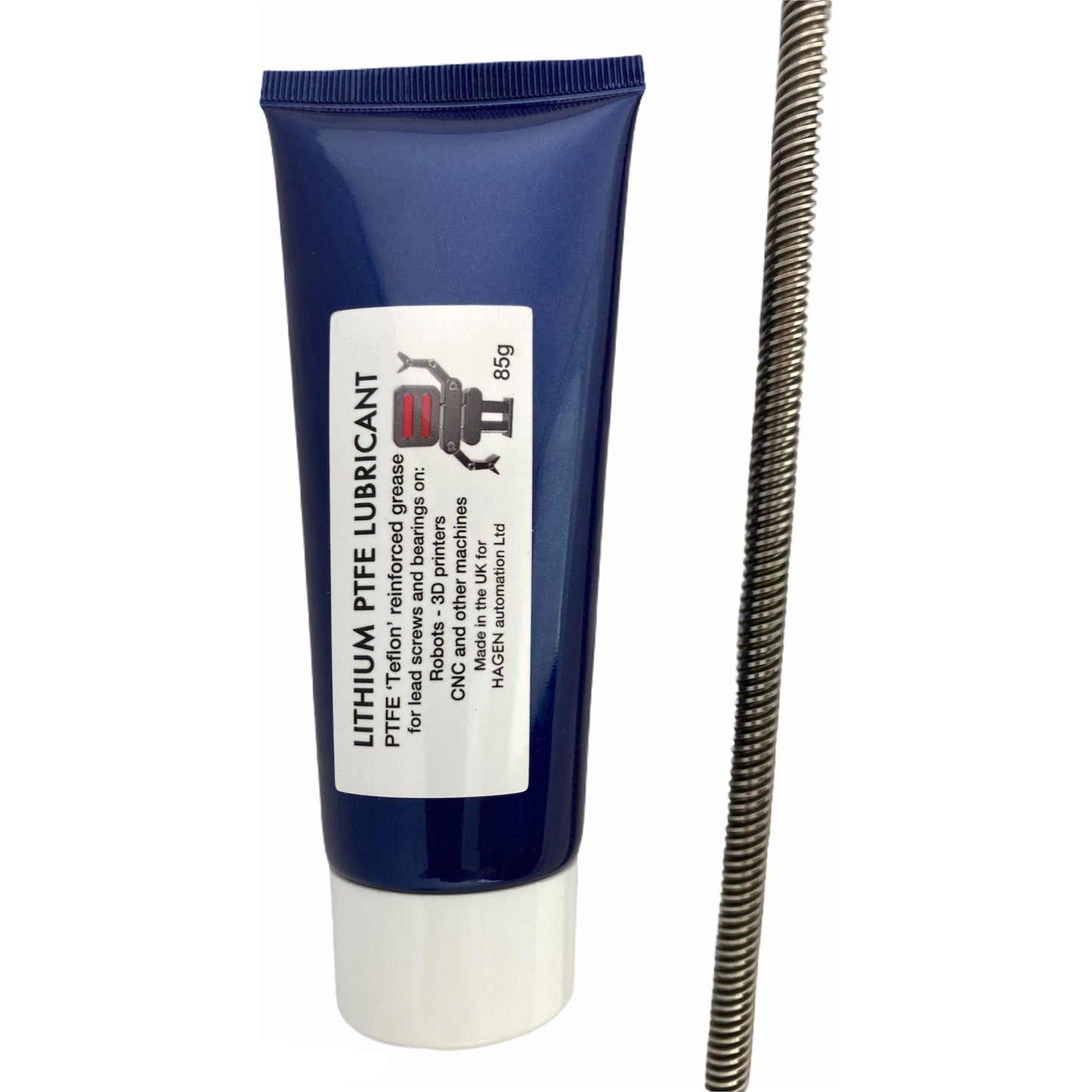

85g PTFE Lithium PTFE Grease for Robots and 3D printers
Premium, Synthetic, Lithium based PTFE reinforced formulation.

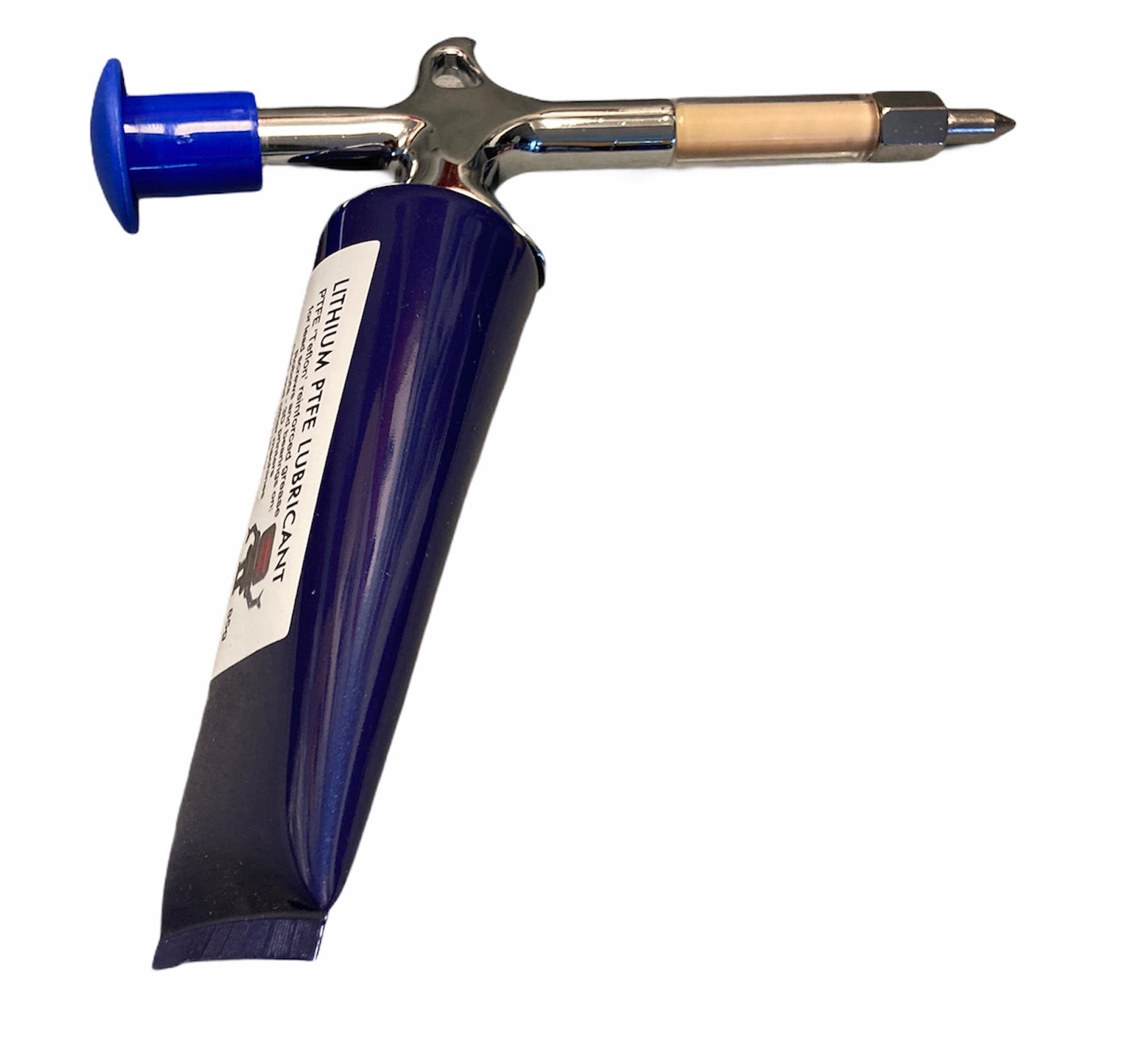

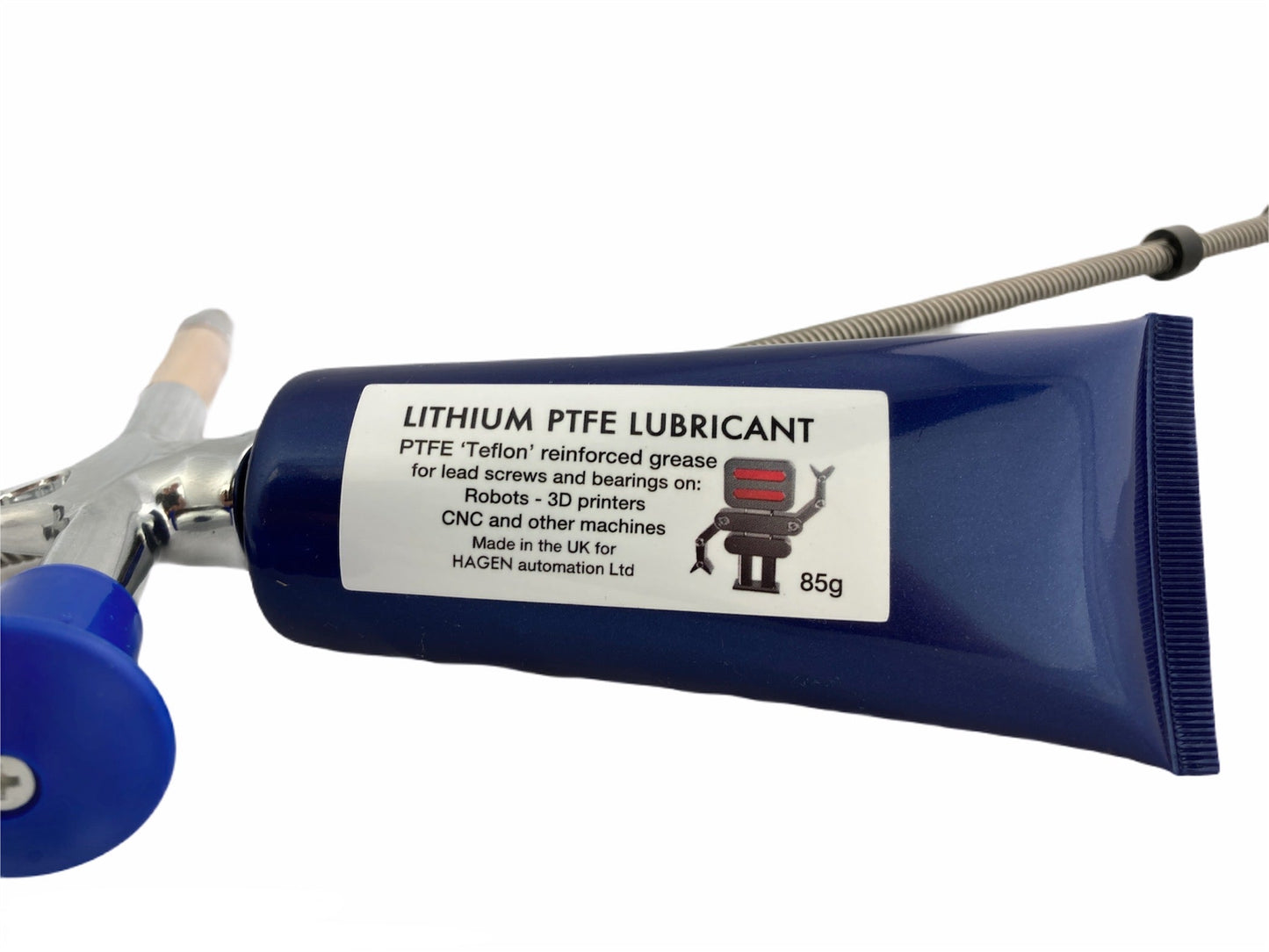

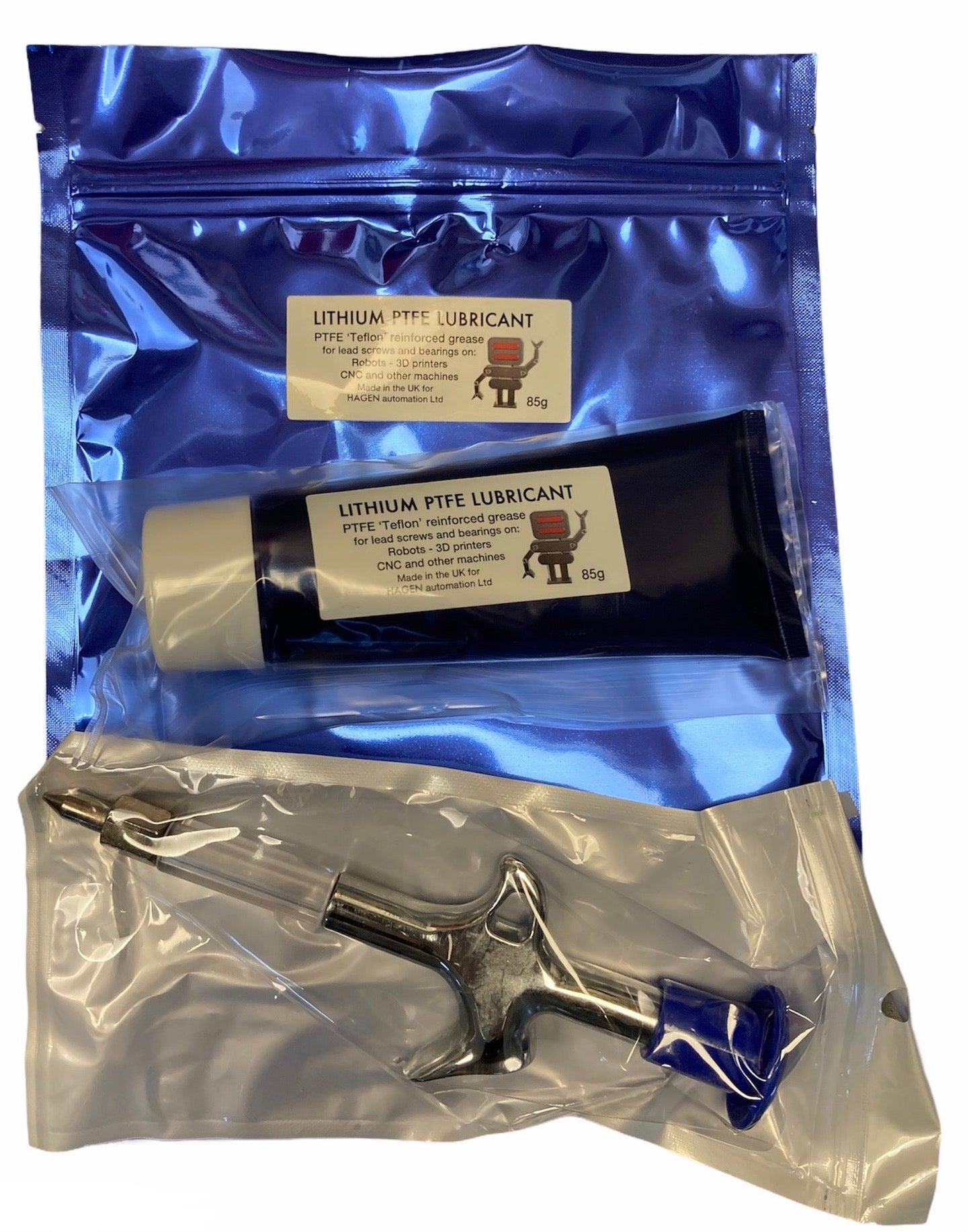

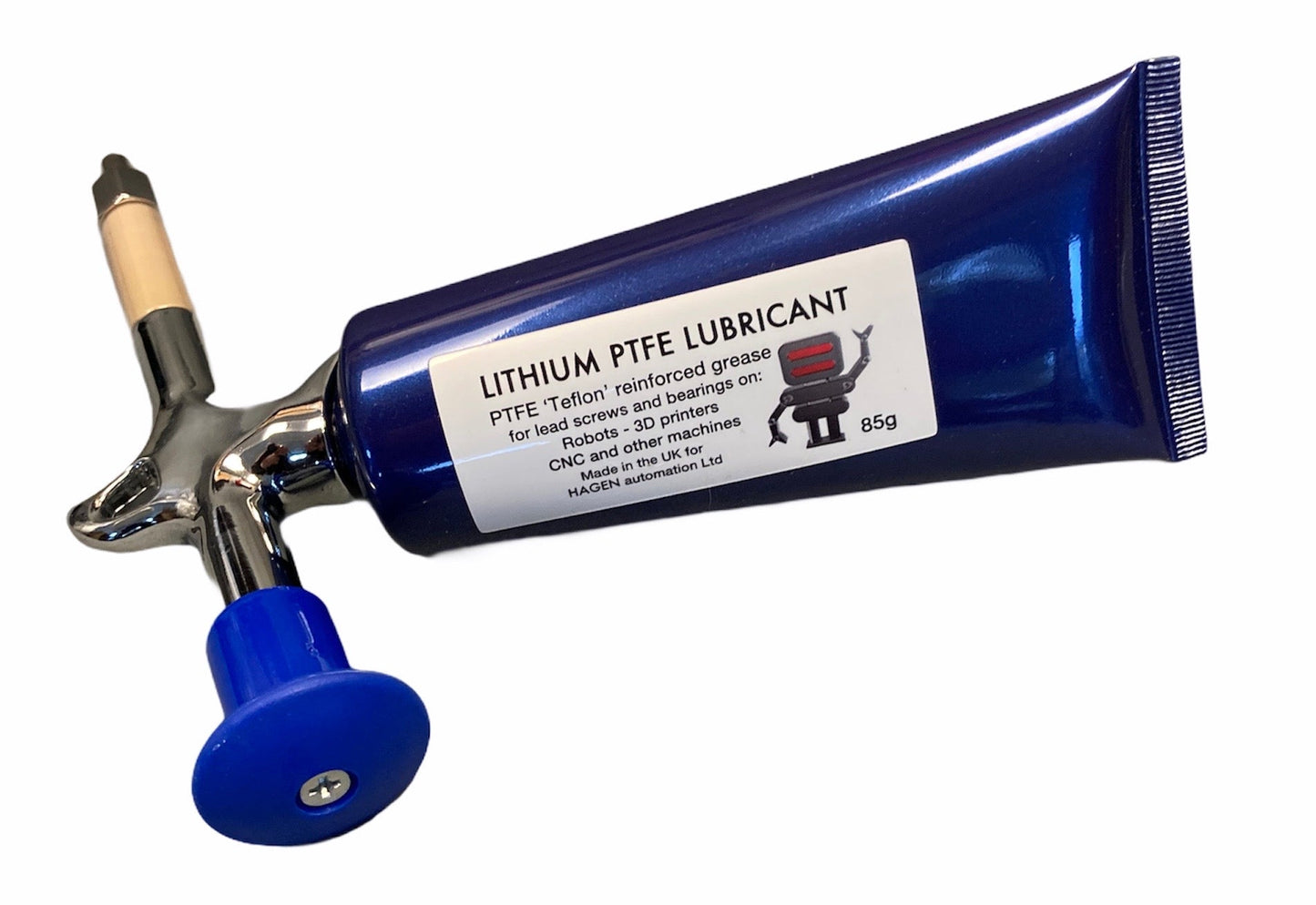

Optionally supplied with a mini grease gun for precise application
Thick NGLI 2 specification - Ideal for Z axis lead screws on 3D printers
Excellent thermal stability. PTFE reduces wear and friction. Ideal for metal on metal sliding contact such as lead screws.
Resists shock loads, extends component life, reduces machine noise, reduces loading on motors
Less chance of missed steps in open loop systems
High load carrying capability
Smoother movement makes better prints
Suitable for bearings and many applications beyond robots and 3D printing
For best results on Z axis screws make sure that surfaces are clean before applying (If heavily contaminated clean with isopropyl alcohol and dry).
For Z axis apply directly to the threads of the lead screw, a thin line running up the thread will work well. Move Z axis up and down repeatedly to ensure even coating.
Do not "overgrease" - a thin, even covering is all that is required - remove any excess to prevent fling and contamination.
Operating Range -50 to +220 C
Dropping point (IP132) >250 C
Shell 4 Ball (IP 239)
Weld Load 355kg
Load Wear Index 68kg
Copper Corrosion (IP112) Pass
dN factor 750,000
Please note that for ball-screws, linear rails and linear bearings of the LM8UU type we recommend using use our Lithium 00-EP lubricant
