Dobot M1 low cost desktop robot arm

£4,620.00 inc VAT

What is a Dobot M1?

The Dobot M1 is a 4 axis, 400mm reach 1.5 kg payload SCARA robot arm ideal for a wide range of industries and applications. The robot's controller is built into the base along with a range of I/O and safety connections.

How is it programmed?

The robot is programmed by a user friendly interface that is run on Windows. It is intuitive to use and has a scripting interface as well as point to point programming. It gives you control over the robots built in I/O and has a range of logic commands.

Give it a try!

You can download the software from Dobot's website here

Download the user manual here

Advanced users can download the API documentation here

Will it do your application?

The M1 is designed to be used in a broad range of settings from industrial production lines to laboratories - even automating home based startups. The best thing to do is to see an M1 working and discuss your application with us. Please give us a call or send an email to arrange a demo.

You can download a STP CAD file for the M1 robot here

How much is an M1?

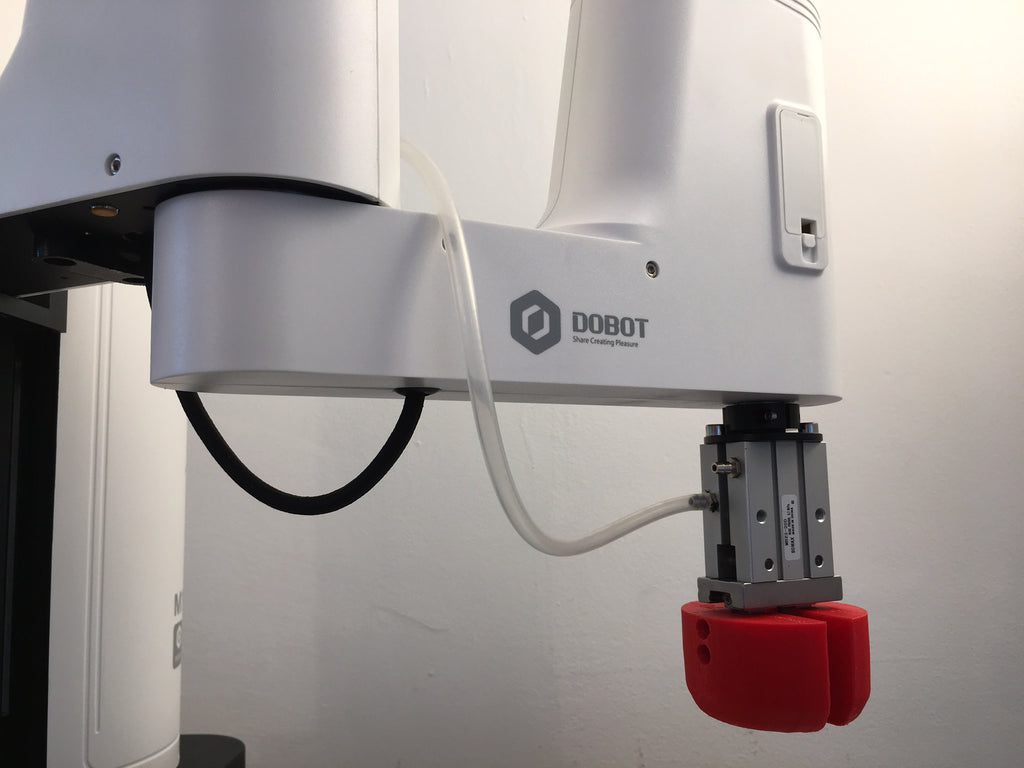

A basic machine is under £4k + vat (this is less than half most comparable robots) which makes it ideal for a lot of applications where it can offer a cost effective solution compared to a bespoke machine, and a huge saving in development time and risk. The M1 is also available with various suites of tools and can be enclosed in a ready to go, CE marked, cell. Prices depend on specification and tooling but we aim to get you up and running fast and affordably. The payback for the M1 is typically measured in weeks.

Specifications:

Reach 400 mm

Max horizontal velocity 2 m/s

Max vertical velocity 1 m/s

Repeatability 0.2 mm

Payload 1.5kg

24v I/O built into the arm:  22 digital Out and 24 digital Inputs

Controller: Real Time Linux  built into the base of the arm

Programming interface: M1 Studio (Windows)

 Please contact us for more information or to arrange a demo email us at info@hagenautomation.com
